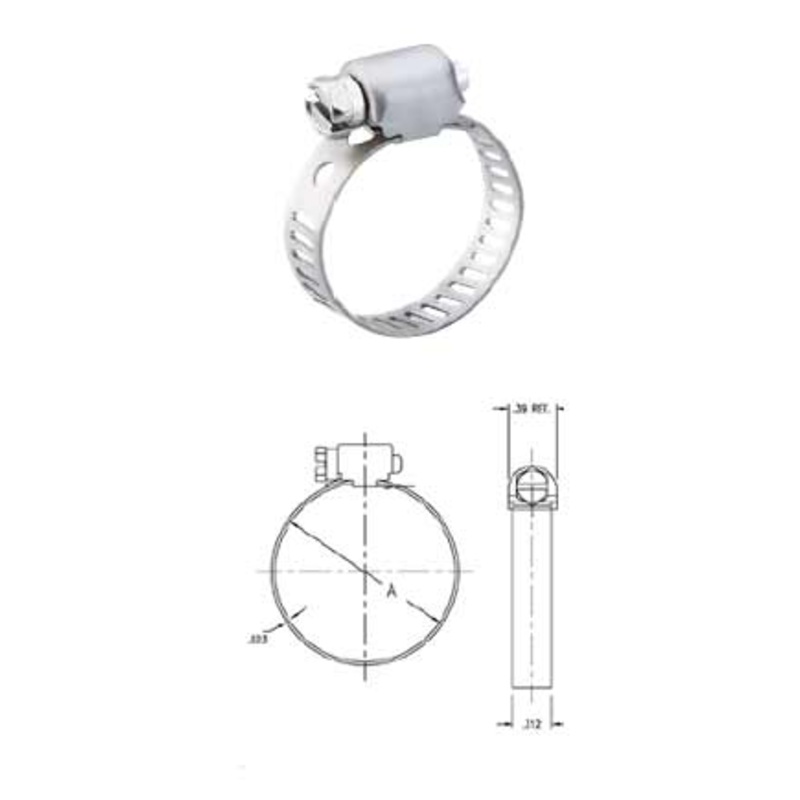

A lightweight, streamlined clamp generally used in small diameter applications such as air & fuel lines. The streamlined configuration allows for installation in tight fitting or difficult to reach areas. This clamp creates high sealing pressure with only 10 to 15 in./lbs. of installation torque.

5/16″ (7.9 mm) band
1/4″ (6.4 mm) slotted hex head screw

Per SAE standard J1508 Type M

EFFECTIVE DIAMETER RANGE PART NUMBERS SAE Size Min. Max. Plated Hex Screw 410 SS Hex Screw 300 SS Hex Screw All 316 SS in. mm. in. mm. 4 7//32 5.6 5/8 16 3504 3604 3704 3804 6 7/16 11 25/32 20 3506 3606 3706 3806 8 1/2 13 29/32 23 3508 3608 3708 3808 10 9/16 14 1-1/16 27 3510 3610 3710 3810 12 11/16 17 1-1/4 32 3512 3612 3712 16 15/16 24 1-1/2 38 3516 3616 3716 20 1-3/16 30 1-3/4 44 3520 3620 3720 24 1-7/16 37 2 51 3524 3624 3724 28 1-11/16 43 2-1/4 57 3528 3628 3728 32 1-15/16 49 2-1/2 64 3532 3632 3732
